Combination JetVac

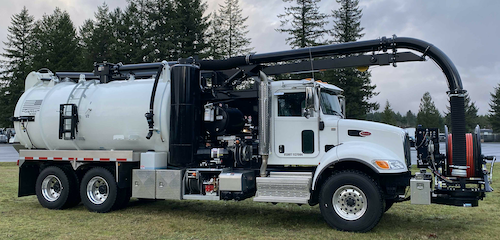

The GapVax MC Series unit, Combination JetVac, is a wet-only machine, equipped with a unitized water and debris tank and double sub-frame. Heavy-duty double acting single-lift cylinder provides a stable 50 degree dump angle. The MC series is also equipped with an 8' front-mounted, telescopic boom with dual lift cylinders, reaching 26' with a 180 degree rotation. With a wide variety of sizes available, this is an ideal candidate for any size municipality, water and sewer district, or contractor who is cleaning storm drains, catch basins and/or sewers.
GapVax offers a single-axle and a double-axle model. The smaller Combo unit gives you the choice of a 4-8 cubic yard debris body and a water tank capacity of 500-1,200 gallons. The Double Axle MC allows for a 8-13 cubic yard debris body and water tank of up to 2,000 gallons. Our custom-built units allow for various configurations to make for happy customers.
Features
A Body Built to Last
- Unitized, cylindrical, water/debris tank with full longsill sub-frame
- 3/16" non-corroding stainless steel water compartment
- 3/16" high strength carbon steel debris compartment
- Full-opening rear door
- Liquid tight seal of the rear door is always assured by a non-corroding stainless steel ring
- Reversible tailgate gasket
- Four independent, field-adjustable rear door locks
- Adjustable rear door hinges
- Dual lift cylinders to open the rear door
- Material-backed air inlet
- Top-loaded debris compartment for maximum debris capacity
- Material loaded at rear of debris compartment for fast unloading
- Debris compartment inlet diffuser significantly reduces material carry-over
The Smoothest Drive System
- Mid-ship transfer case directs the power of the engine to the blower and hydraulic system
- Transfer Case rated at 500 continuous horsepower
- Transfer case mount is vibration isolated with four isolators
- Oil level sight glass
- A hot-shift clutch is available for remote activation
Power Vacuum Performance
- Rotary lobe positive displacement blower
- Minimum air slippage under vacuum
- Direct shaft drive
- Blower mount is vibration isolated by four isolators
- Ultra quiet specifically engineered absorption silencer
- Blower air connections isolated by rubber couplings
- Silencer supports independent of blower
- Oil sight glasses
- Rated at 3,500 CFM and 18" of vacuum
- Upgradable to 5,900 CFM or 27" of vacuum
- Operator-friendly vacuum relief valves
Filtration
- Top loading body
- Debris compartment inlet diffuser directs material from the airstream
- 12" stainless steel floatball to shut off liquids from overloading
- 10" low friction pipework
- Specifically engineered centrifugal separator to force the dust and mist from the airstream into a large capacity compartment
- Air passes through a final micro-screen strainer before entering the blower
Gapvax Boom
- Works as one with the chassis thanks to the GapVax structural steel torque box
- Heavy-duty Dual lift cylinders
- 180 degrees of rotation
- Full 8" flow capacity
- 3/16" tube design for minimum friction and very long compartment life
- Field-adjustable seals
- Standard 9' extension, 26' reach from center of the truck
Put It Together
- The heavy-duty subframe is bolted to the chassis
- 4" cross I-beams for maximum rigidity
- Full body pivot pin through rear of sub-frame for excellent dumping stability
- Double acting 3-stage dump cylinder substantially extends the life of the chassis suspension
- Torque Stabilization System
Jetting System
- High pressure water pump designed to use recycled water up to 300 micron
- Rated at 50-100 GPM at 2,000 -3,000 PSI
- Positive displacement Tri-plex plunger style pump
- Uses "chevron" seals, no rope packing
- Direct shaft drive from 8 or 10-bolt transmission PTO
- Can operate independent of the vacuum system
Front Hose Reel
- Hydraulically powered direct-drive gearbox
- Variable speed control
- Heavy-duty stainless steel water swivel
- Positive action spooler lock
- 4' (curbside) articulation from center of bearing
- 180 degree rotation
- Mounted on a heavy-duty 12" bearing with external grease fittings
- Air operated brake
- Operator-friendly control station
- Easy and full engine access for maintenance
- Integrated docking station allows full hose reel operation without moving the boom
Standard Equipment
- Noise and vibration dampening mounts on blower and transfer case
- High efficiency, low maintenance, all steel air duct construction with cleanout access
- "Sure Seal" stainless steel sealing rod on tailgate and dump chutes
- Full bearing body pivot pin
- Body and tailgate safety props
- 6" Vacuum relief
- 80 GPM/2,000 PSI Tri-lex water pump
- Multi-flow water system
- 3" Water fill line and anti-siphon and 2-1/2" Fire hose fitting
- Curbside water level sight tube
- 3" Water supply line with easy access filter and shutoff valve
- Low point water drains
- Front hose reel features include: Heavy duty frame mount front hose reel with high grounded clearance; 1-1/2" Hardened steel water swivel; hydraulically powered, direct-drive gearbox; boom hose docking station; and easy engine access
- Control box: Weather tight front box
- Front Control Box includes: Blower and water pump hour meters, water, vacuum, and hydraulic pressure gauges, joystick boom control, multi-flow water pressure control, reel brake, engine tachometer, throttle control, vacuum relief control
- Additional Controls: Water flow, hose reel
- Load Sense body hydraulic system
- Easy access hydraulic controls
- 65 Gallon hydraulic reservoir
- Easy access galvanized tube trays
- D.O.T. rear bumper
