Industrial Vacuum Loader

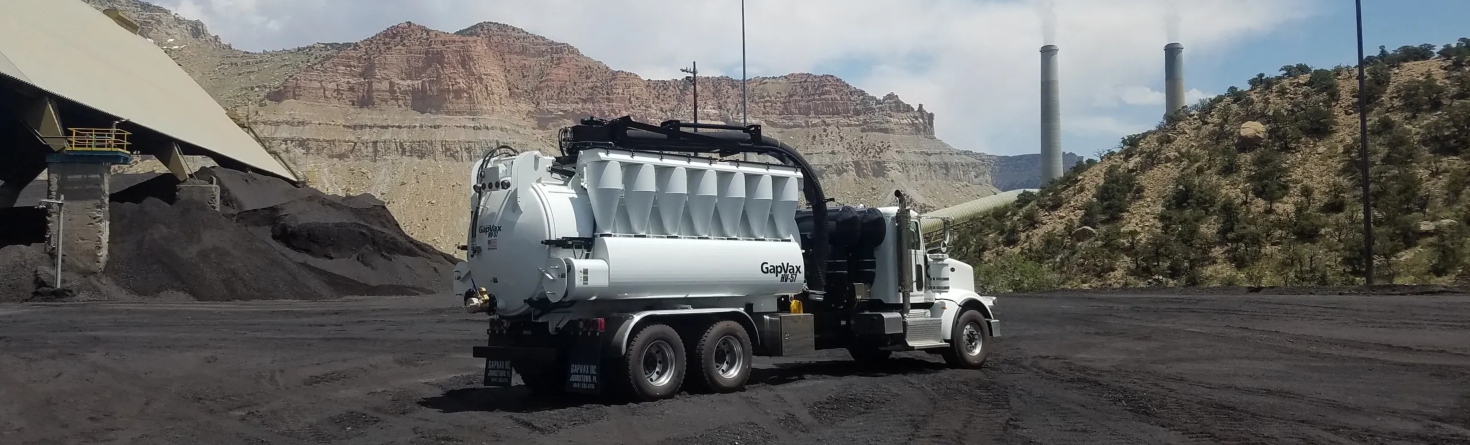

The GapVax HV Series Industrial Vacuum Loader is the industry's most advanced vacuum truck. These wet-dry vacuum units are versatile, rugged, and reliable and are great in power plants, bridge cleaning, and hundreds of other industrial applications. The HV-57 Air Mover is our original product.
Applications
- Hazardous material removal
- Cement, lime, mineral, and other bulk products
- Food processing and grain elevator cleaning
- Machinery maintenance (i.e. oil and grease pumps, track equipment, turbine maintenance, and removal of product build-up such as sand, scale, or debris)
- The marine and mining industries
- Oil fields and refineries
- Paint restoration and total containment systems
- Non-sparking vacuum systems
- Tank cleaning
- Steel mills
- Spill response
- Pulp and paper mills
- Roof maintenance and replacements
- Power generation applications (coal, nuclear, hydro-electric, and wind/other alternative sources)
- Railroad applications and more!
Standard Equipment
- Noise and vibration dampening mounts on blower and transfer case
- 12" Stainless steel liquid shutoff float ball
- Easy decon cyclone system
- High efficiency, low maintenance, all steel air duct construction with cleanout access
- 20" Body access manway
- Debris body semi-circular material baffle with surge bar
- "Sure Seal" stainless steel sealing rod on tailgate and dump chutes
- Field adjustable baghouse doors, easy-open, no power assist required
- Full bearing body pivot pin
- Blower hours meter and temperature gauge
- Custom engineered, stainless steel, vee-wire safety screen (600 micron)
- Top loading debris body inlet; long life design resists abrasion
- Porthose rotation flange
- Heavy-duty rear mounted 8" porthose with ground level connection
- All cleanouts are adjustable
- Three (3) Tie-off points on top of body, 6' apart
- 50 Gallon Hydraulic oil tank
- Heavy-duty electric vibrator with thermal overload protection
- Super heavy-duty rear splash plate
- Two adjustable sealed-beam worklights on tailgate
- Body and tailgate safety props
- Full length aluminum fenders
